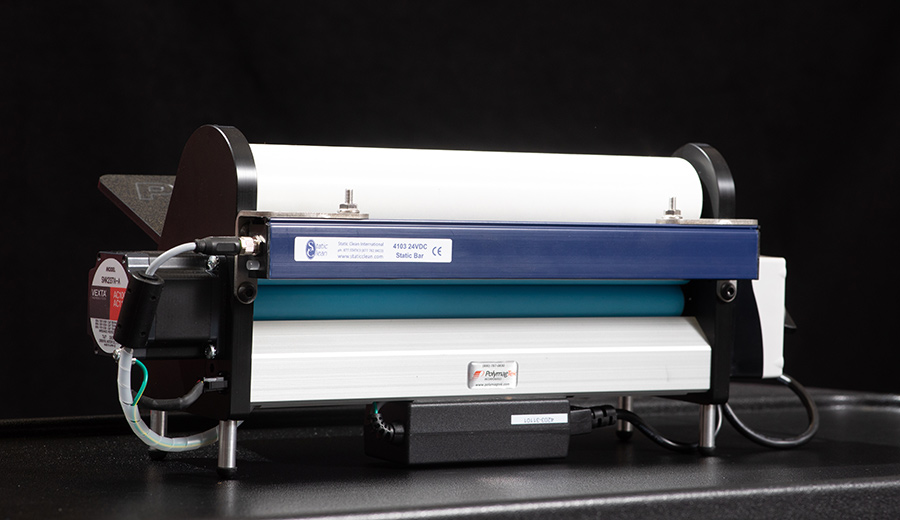

Two-Sided, Desktop Sheet Cleaner
This system offers big sheet cleaning capability in a small package.
Contact Cleaning Rolls (CCR) remove contamination from the sheet and then transfer it to adhesive tape rolls.
Applications
- 2 Sided Sheet Cleaning
- “Desktop” cleaning
- “Light‐duty” applications
- “Single Nip”- up to 96.9% efficiency*
Process Parameters
- Single speed motor approximately 19 fpm
- Sheet widths up to a maximum 11.5”
- Plugs into standard 110VAC electrical outlet
Features
- 2‐sided, gravity, single-nip, open frame design
- 1.00” O.D. Contact Cleaning Rolls (CCR)
- 1.50” I.D. Core, Pre‐Cut, Sheeted Adhesive Tape Rolls
- Notched side frame allow for easy tape sheet change and tape roll disengagement
- Removable in‐feed tray
Options
- Outbound Active Static Elimination
- Silicone Free Cleaning Rolls
